Rick Young helps Wright Redux build the prototype Wright Flyer |

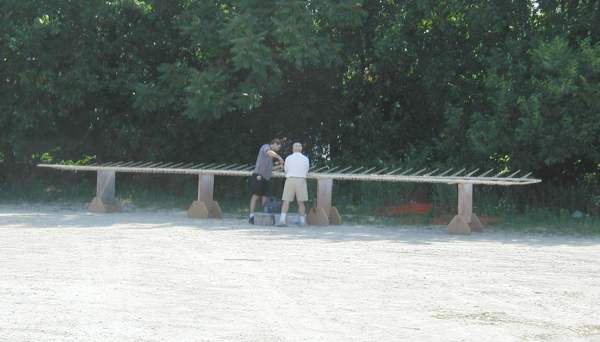

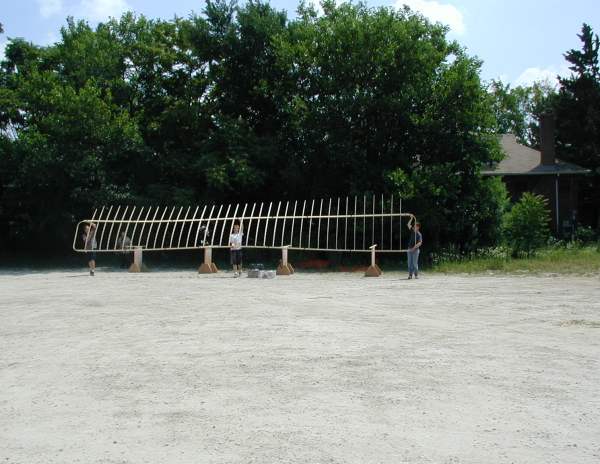

1. A prototype of the wing assembly is adjusted in the parking lot of Miller's shop. |

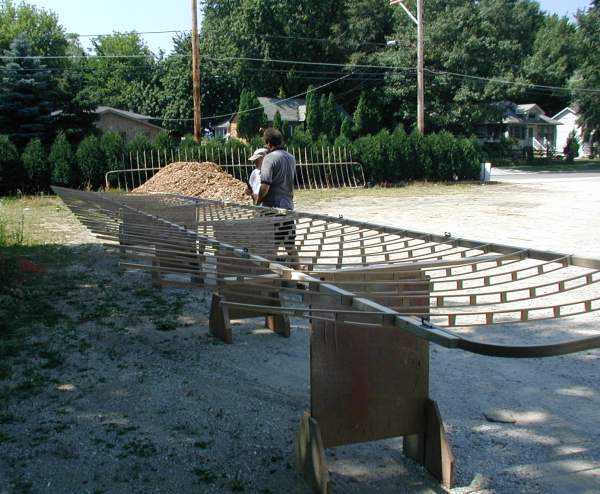

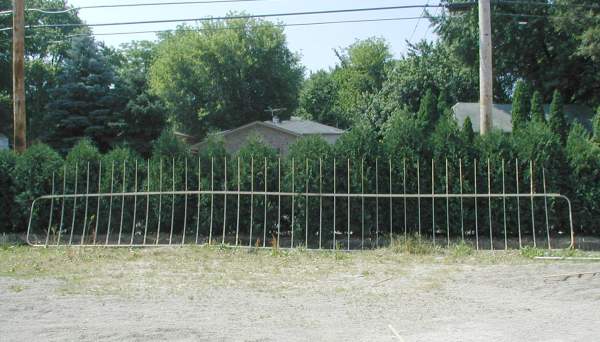

2. The prototype wing waiting to be worked on. |
3. Grover, Rick's sidekick is always nearby. |

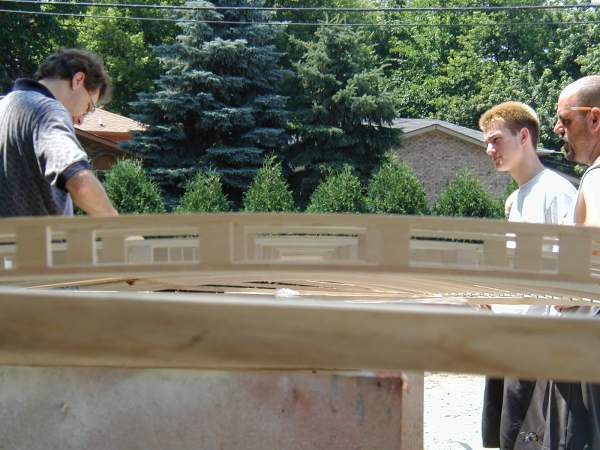

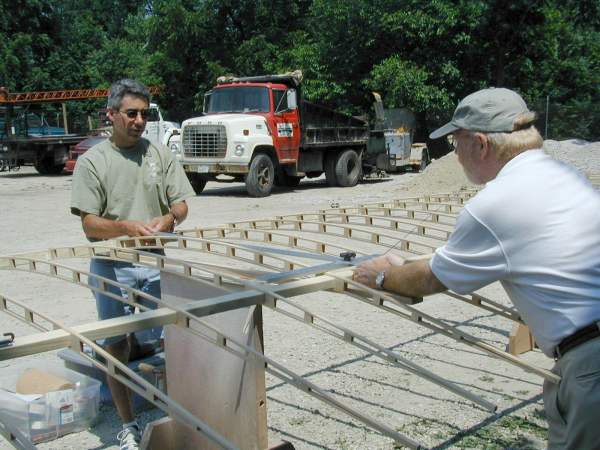

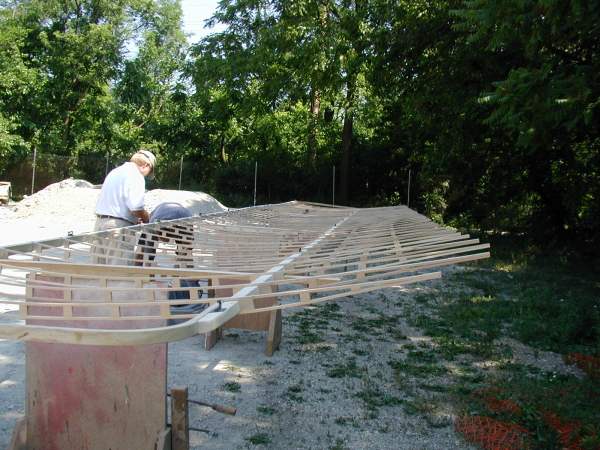

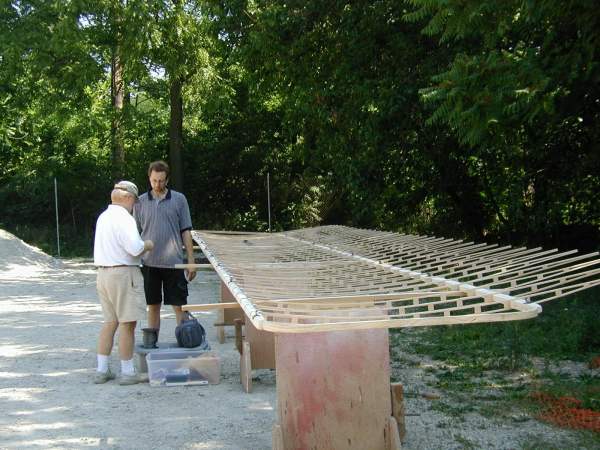

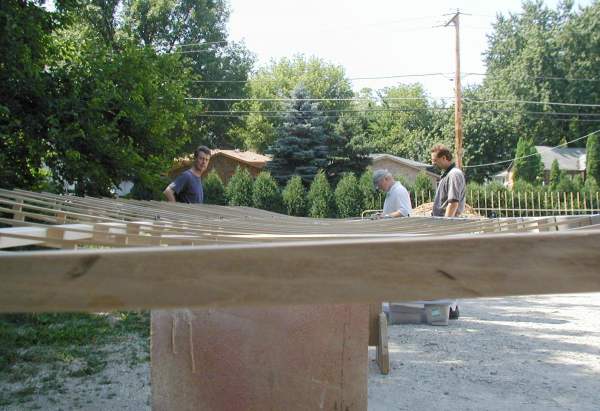

4. Rick and Grover spent most of the day squaring up the wing assembly. |

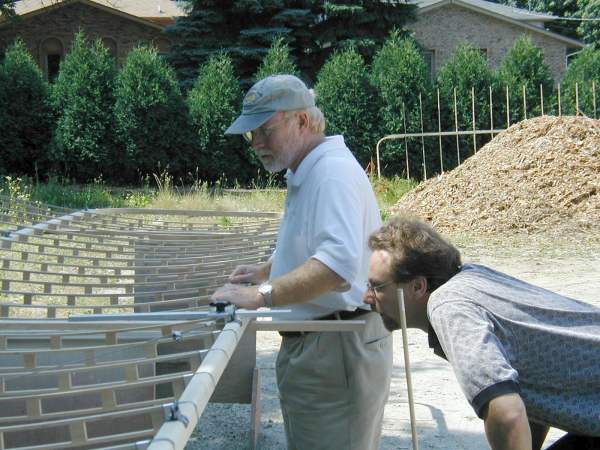

5. Using a T-square, Grover eyeballs the squareness of teh wing cell. |
6. Tom comes out to see what Rick and Grover are up to. |

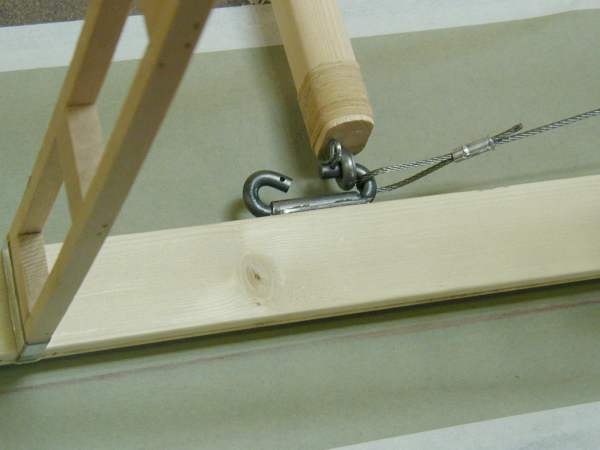

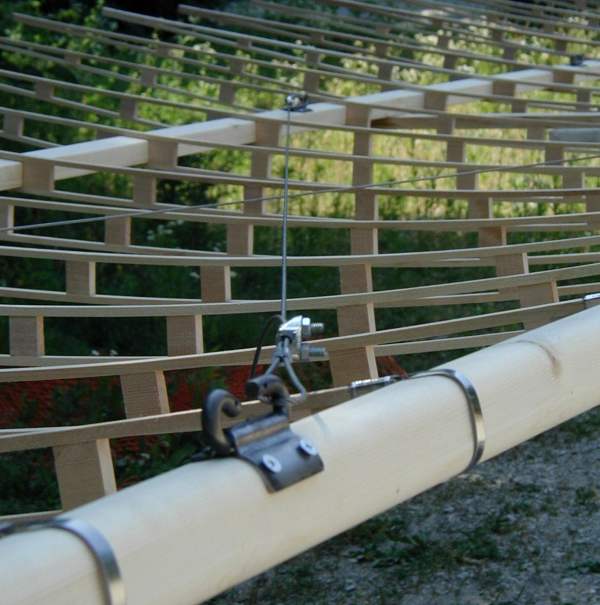

7. This is the wire rigging they used to square up the framework. |
8. |
9. Grover and Rick continue to fiddle. |

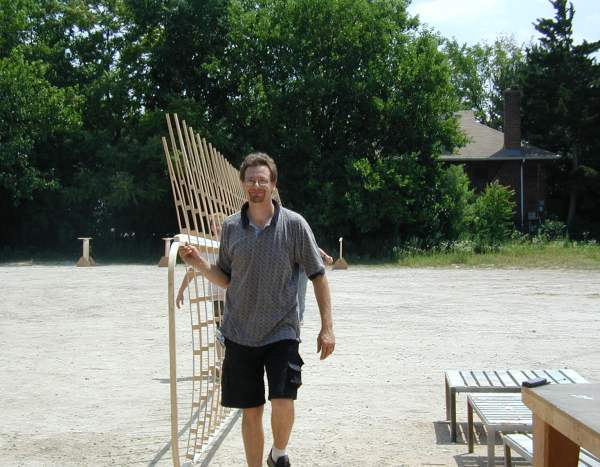

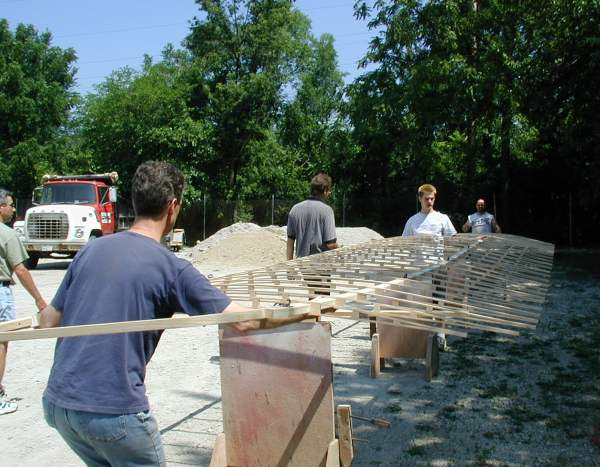

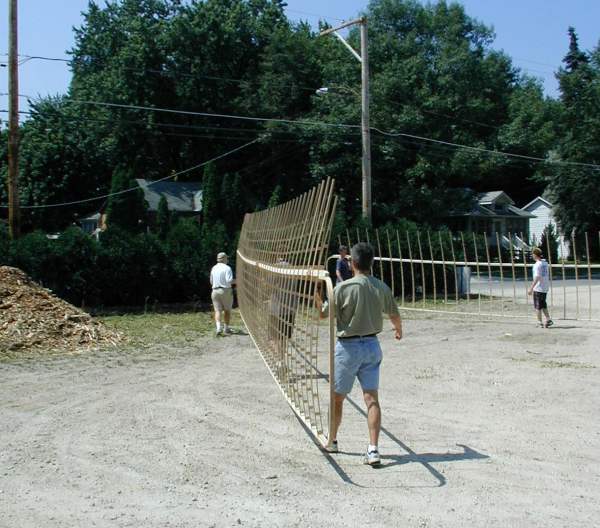

10. The wing cells do a docie-doe in the parking lot. |
11. Mark and Reese come in to help. |
12. Cool, huh? |
13. |
14. More chit chat. |
15. Mark demos the strut connection. |
16. I don't know this guy, but he and Rick seemed to be buddies. |

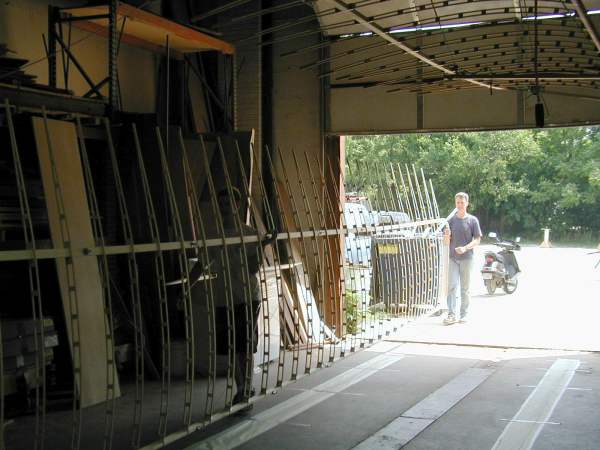

17. The wing cell is brought into the shop. |

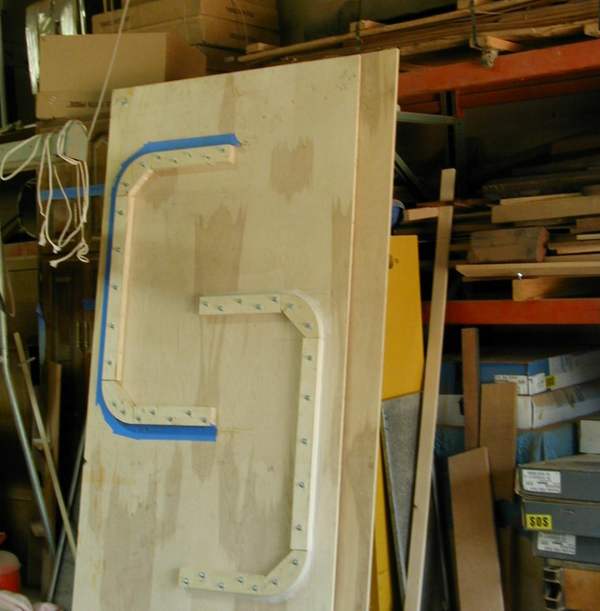

18. Here's the jig that formed the end bows. |
19. Reese and Tom bring in the wing. |

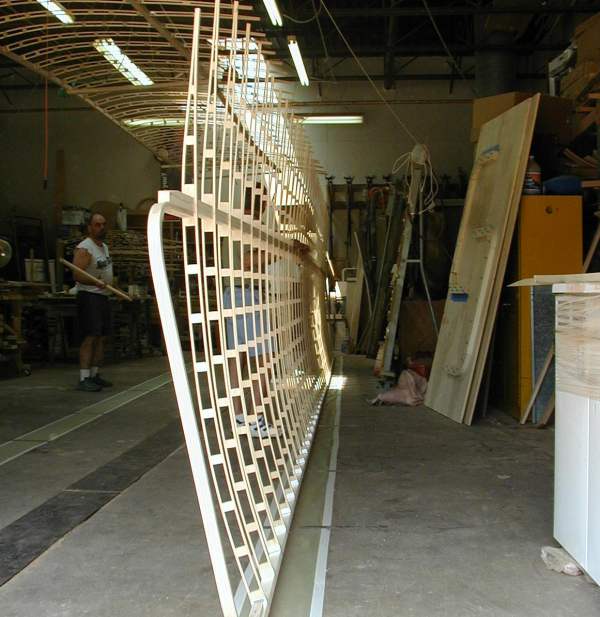

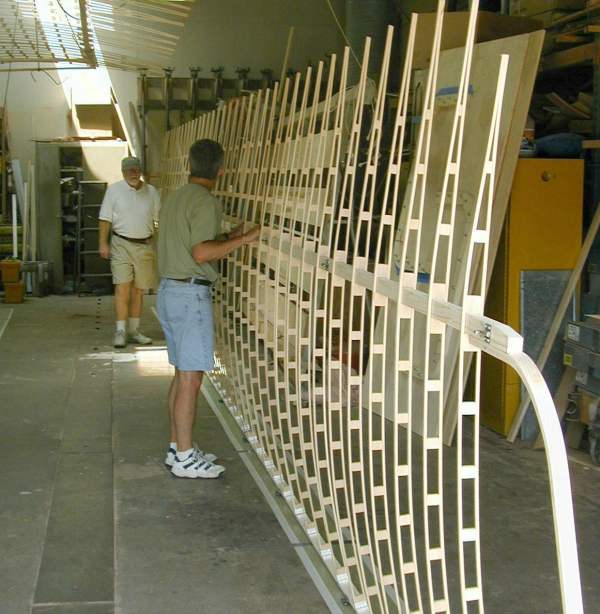

20. |
21. The lower wing is propped up as it waits for the upper. |
22. I don't know why Grover had such a silly grin. I guess he was having fun. |

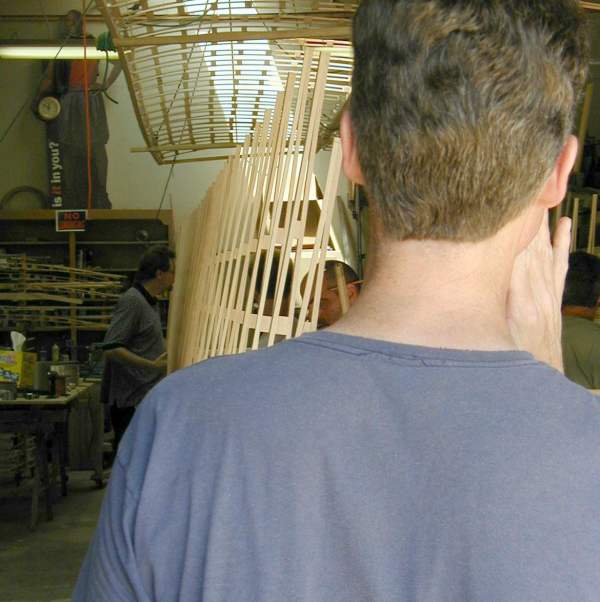

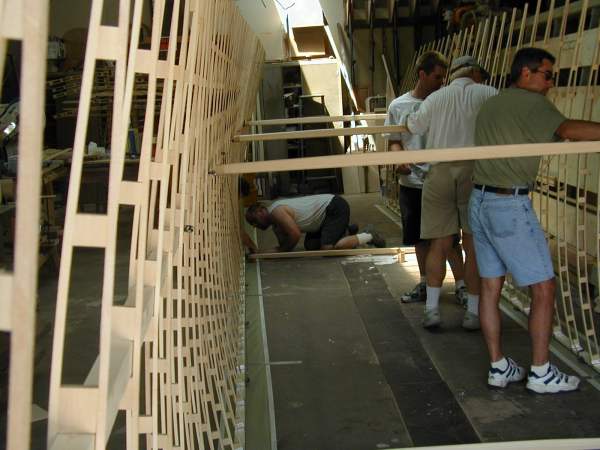

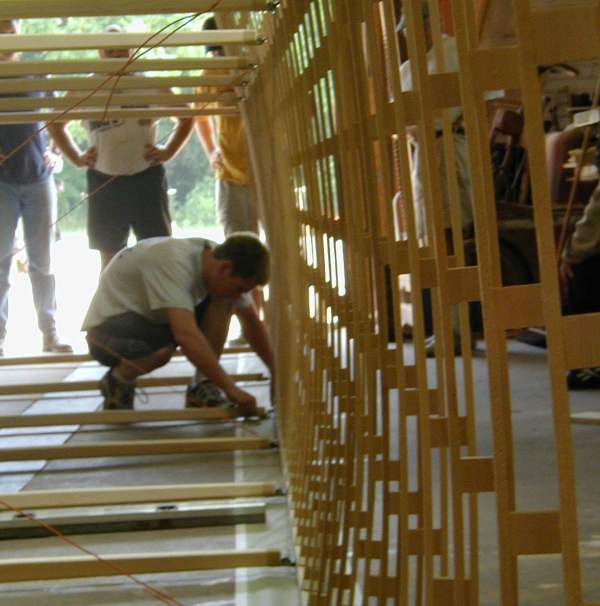

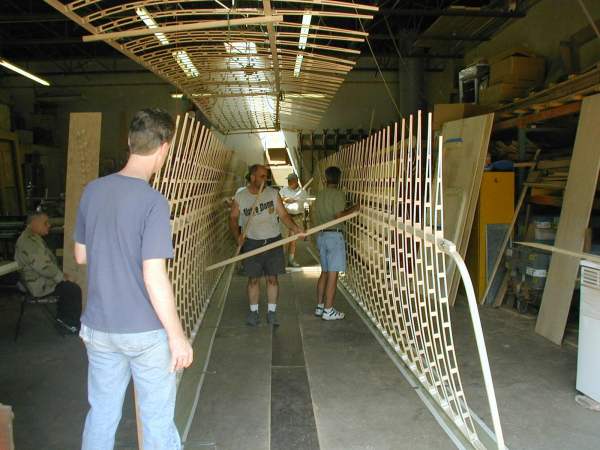

23. Assembly of the upper to the lower wing begins. |
24. |
25. This is the same method we used for the final assembly at Clow. |
26. |

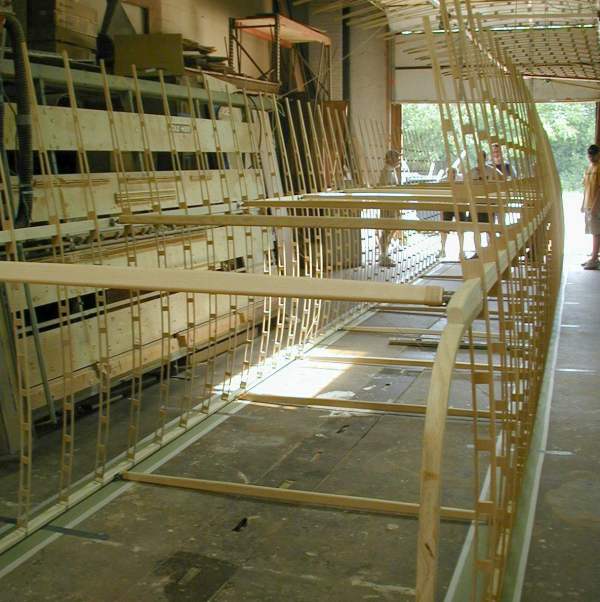

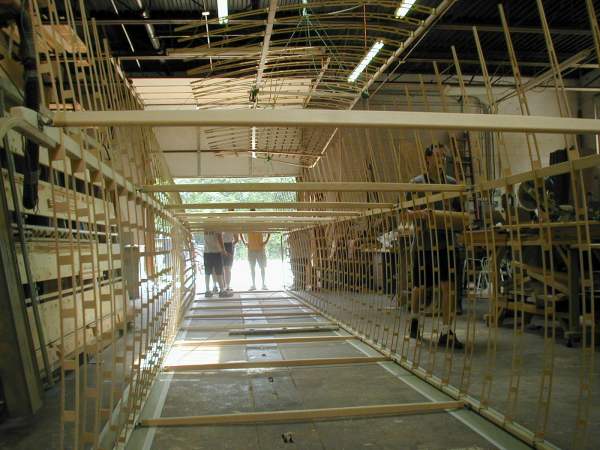

27. Struts are done. Now the rigging. |

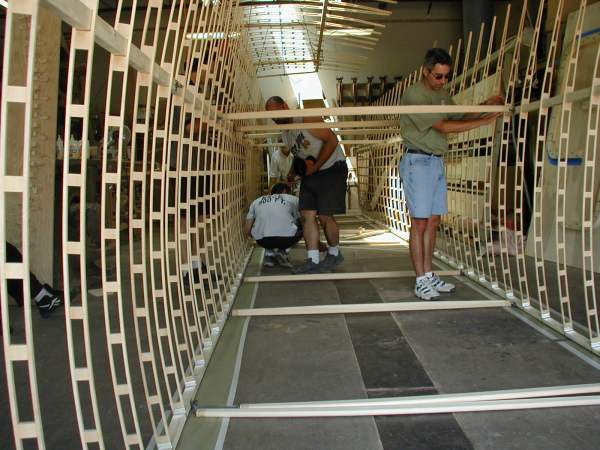

28. |
29. Reese keeps working. |

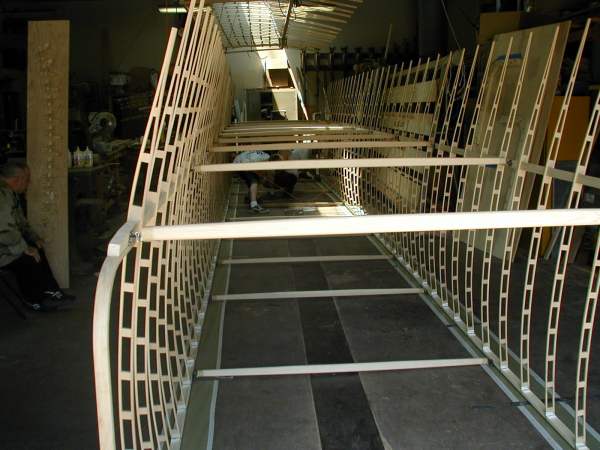

30. |
31. It's just about done. |
32. Looking good. |
More to come. |
